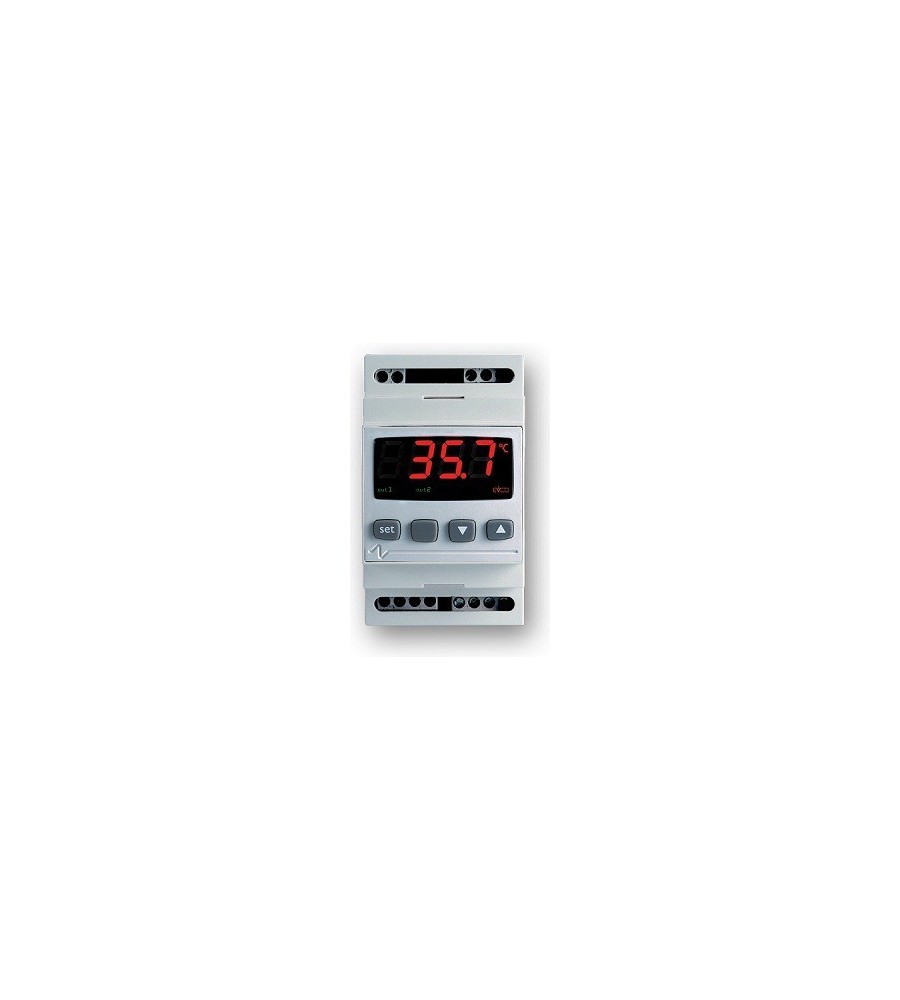

1The EVCO EV6221P3 is a 12-24VAC/DC DIN Rail mounted digital temperature controller with a LED display and is capable of controlling medium temperature refrigeration applications.
The instrument has 1 x cabinet temperature sensor, 1 x 16A compressor relay and 1 x digital door input.
Technical Details
Mounting: DIN Rail Mount
Housing: Self Extinguishing Plastic
Frontal Protection Rating: IP65
Size: 90mm x 53mm x 61mm(H X W x D)
Display: 3-digit red LED with 1 decimal point
Power supply: 12-24VAC/DC
Temperature range:
-50 Deg C to +120 Deg C with a PTC Probe
-40 Deg C to +110 Deg C with a NTC Probe
Analogue Inputs: 1 Probe (NTC or PTC)
Digital Input: 1 Door Switch Input
Relay Outputs:
Relay 1 for Compressor 16A 250VAC (N/O contact)
Defrost: Compressor off cycle (Programmable)
